Hollow Metal Door with Lite Kit & Glass
Hollow Metal Door with Lite Kit & Glass
Starting at: $480.00
Description
Heavy-duty steel door with glass kit designed for commercial, industrial, and institutional environments.
Our in-stock hollow metal door is a cost-effective, non-handed, square-edge solution built to meet demands for durability, security, appearance, and fire protection. Fire-rated glass options are available with permanently etched UL classification for compliance and reliability.
Features

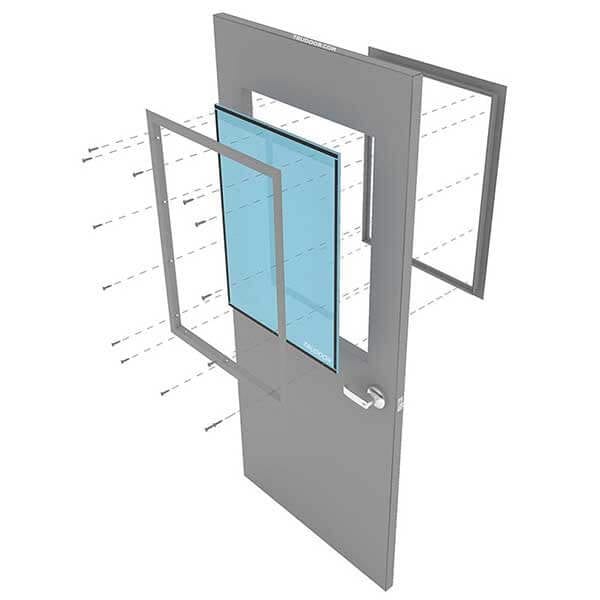

- Includes self-attaching steel vision lite frame insert with glass
- Glass options: clear tempered, insulated, wire safety, and clear fire-rated ceramic glass
- Lite kit order size matches cutout size — glass size is 1″ smaller; visible glass area is 2″ smaller
- 1-3/4″ thick non-handed design with reversible hinge plates
- Interlocking seam for enhanced strength and long-term durability
- Factory-applied rust-inhibiting primer (standard finish; no custom color options)
- Optional fire rating up to 3 hours with WHI / ITS Mylar label applied
| Level |
Heavy Duty, SDI Level 2 – 18-Gauge Steel Face Sheets – (16 Ga. Available) |
|---|---|
| Core |
Rigid Honeycomb Core or Polystyrene Core |
| Door Thickness |
1-3/4" Standard |
| Handing |
Non-Handed Design; Reversible Hinge Plates |
| Door Sizes |
Standard Widths up to 4'0", Height to 8'0" (Custom Sizes Available) |
| Edges |
Square Hinge and Lock Edges (Beveled Edges Available) – Full Height, Epoxy Filled Mechanical Interlock Edges |
| Reinforcements |
Heavy Gauge Door Closer and Hinge Reinforcements |
| Channels |
14-Gauge Inverted Top and Bottom Channels, Optional Flush Top Cap |
| Door Finish |
Factory-Applied, Baked-On, Rust Inhibiting Gray Primer (No Special Color Options) – Not intended to be a finish coat. It is recommended that finish paint (top coat) be applied after installation |
| Standard Preps |
161 (cylindrical lock), 86 Edge (mortise lock), Deadbolt, RPD (blank edge, panic reinforced) |
| Optional Preps |
Continuous Hinge Application (Undersized Width), Exit Device Trim, Louver Cutouts |
| ANSI Standards |
Meets or Exceeds Standards for ANSI 250.4 and ANSI 250.8 |
| Door Fire-Rating |
Optional (with fire glass) – WHI / ITS up to 3-hour Fire-Rating, Positive Pressure and “S” Smoke included |
| Vision Lite Frame Construction |
20 or 18-Gauge Steel |
| Vision Lite Frame Brands |
Air Louvers, NGP (National Guard), Advantage, Rockwood |
| Vision Lite Frame Fire-Rating |
3 Hour – Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure – WHI Listed |
| Vision Lite Frame Finishes |
Gray, Bronze, Black or White Powder Coat, Primed Gray |
| Glass Types |
1/4" Clear Tempered, 1" Insulated, 1/4" Fire-Rated Wire, 3/16" Fire-Rated Pyran Platinum F |
| Buy American Act Compliance |
Meets Buy American Act – Made in USA |
| Mfg. Hinge/Lock Locations |
Steelcraft, Mesker, Ceco, Curries, Republic, Baron, DKS, Pioneer, Deansteel, Custom Locations |
Clear Tempered Glass
Heat-treated clear safety glass designed to shatter into small, less hazardous particles. Suitable for use in non–fire-rated doors.
- CAT II impact-rated safety glass
- Light transmission: 86%
- Fire rating: None
- Thickness: 1/4″
Pyran® Platinum F Fire-Rated Glass
UL-labeled, fire-rated clear ceramic glass with a surface-applied heavy-duty safety film. Designed to remain crystal clear without any amber tint.
- CAT II impact-rated
- Safety film applied on one side
- Light transmission: 80%
- Fire rating: 20 to 180 minutes
- Thickness: 3/16″
Protect3 Fire-Rated Wire Glass
UL-labeled fire-rated glass featuring embedded wire mesh and a surface-applied heavy-duty safety film for enhanced strength and protection.
- CAT II impact-rated
- Safety film applied on one side
- Light transmission: 86%
- Fire rating: 20 to 90 minutes
- Thickness: 1/4″
Insulated Glass
Insulated glass unit featuring two panes of tempered glass separated by a metal spacer and sealed for enhanced performance.
- Clear intumescent interlayer
- Light transmission: 84%
- Fire rating: None
- Pane thickness: 3/16″ or 1/4″
- Overall thickness: 1″
Using glazing tape on both sides of any glass type is recommended to help reduce the risk of breakage. For fire-rated glass installations, glazing tape is required to ensure proper performance and compliance.
