Fire-Rated Mineral Core Wood Doors
Fire-Rated Mineral Core Wood Doors
Starting at: $660.00
Description
Mineral Core Fire-Rated Wood Doors for Commercial and Institutional Applications

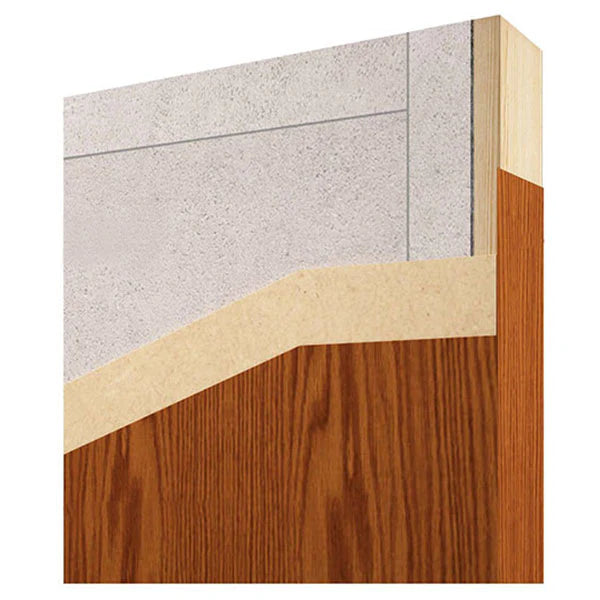

Architectural-grade wood fire doors are designed to help control the spread of fire and smoke for up to 1-1/2 hours (90 minutes). They are commonly installed in openings between corridors and offices, closets, storage areas, stairwells, mechanical rooms, or any space that penetrates a fire barrier wall. Flush mineral core construction features a bonded and sanded gypsum core for dependable fire resistance. Fire-rated doors must be self-closing and equipped with positive latching, and both the frame and hardware must carry the appropriate fire label. For 3-hour fire ratings, metal doors are required.
Features
- Available with a variety of hardware preparations and glass lites (limited sizes)
- 45-, 60-, or 90-minute fire ratings with WHI / ITS metal label applied (see standard door pages for 20-minute options)
- Fire-rated metal door frames available
| Surface Material |
Tempered Hardboard (HDF) or A Grade Wood Veneer, Rotary and Plain Sliced |
|---|---|
| Core |
Fire resistant composite core, gypsum mineral. Contains no added Urea-formaldehyde. |
| Thickness |
1-3/4" |
| Sizes |
Up to 4'0" Widths, 8'0" Heights |
| Horizontal Edges |
Top and bottom rails - wood or composite material. Bonded to core. |
| Vertical Edges |
Matching vertical edges - wood or composite material. Bonded to core. |
| Adhesive |
Type 1, Interior installation only |
| Fire-Rating |
45, 60, or 90 minute label (Warnock Hersey-WHI) |
| Acoustical Rating |
STC 30 Operable When Installed with Tested Seals and Gasket |
| Environmental Options |
CARB PH2/TSCA Title VI Compliant |
| Quality Standards |
WDMA I.S.1A Architectural Wood Flush Doors (Standard Construction) |
| Door Weight |
3.7 lbs/sf |
| Machining |
To specification |
| Vision Lites |
Limited sizes w/ approved fire-rated glass |
| Mfg. Hinge/Lock Locations |
Steelcraft, Timely, Western Integrated, Redi-Frame, Mesker, Ceco, Curries, Republic, Baron, Pioneer, Deansteel, Custom Locations |
| Buy American Act Compliance |
Meets Buy American Act – Made in USA |
| Return Policy |
Machined wood doors are non-returnable |
| Warranty |
Limited Lifetime. No exterior warranty. Interior use only. |
Stain Grade Rotary White Birch
Stain Grade Plain Sliced Red Oak
Stain Grade Plain Sliced White Maple
*Stain Grade Rotary Natural Birch
Primed White Hardboard (Paint Grade)
Clear Prefinished Plain Sliced Red Oak
Clear Prefinished Plain Sliced White Maple
Wood is a natural material with distinctive growth patterns that give each piece its own character and visual appeal. Because of this natural variation—along with differences in screen color and resolution—the actual color and door face veneer may vary slightly from what is shown.
*Rotary Natural Birch veneer features a fine texture and a distinctly irregular grain pattern, often highlighted by light-colored sapwood interspersed with darker heartwood. These natural color contrasts may appear more pronounced or more subtle once the veneer is finished, so they should be carefully considered when selecting Natural Birch. Machined wood doors are non-returnable.
