A grade 2 lock unlike any other
The AL Series has always offered a combination of strength and durability alongside Schlage trusted key system options at a price point favorable to any application. Though these qualities remain, the lock has changed. ALX Series' features now deliver flexibility and value beyond strength and security. X Factor qualities, born from modular design, define a lock that exceeds expectations. AL Series' evolution to the ALX Series is a revolution in lock design.
Unexpected value
The Schlage ALX Series is a stronger lock and a better value at a lower price than its AL Series predecessor. Kit pricing is designed to coordinate with factory configured equivalents. So whether factory configured, wholesale configured or sold as kits, the pricing structure creates list price parity giving wholesalers equal footing in how they choose to price and promote.
Accessibility and life safety
Door hardware should be as effective in helping people go about their lives as it is in securing their environments. The Schlage ALX Series is designed with this requirement in mind.
Accessibility — All Schlage ALX Series levers comply with the Americans with Disabilities Act (ADA), which requires that "Operable parts shall be operable with one hand and shall not require tight grasping, pinching, or twisting of the wrist. The force required to activate operable parts shall be 5 pounds (22.2 N) maximum."
Life safety — The Schlage ALX Series is UL listed for use on 3-hour fire doors up to 4'0" x 8'0". The Boardwalk, Longitude, Omega, Rhodes, Saturn, Sparta and Tubular levers levers comply with the California State fire code for return to within 1⁄2" of the door face.
Tactile warning for the visually impaired — Tactile warning is a special texture that can be applied to either lever to alert the visually impaired to a potential hazard on the opposite side of the door (exit to street, a workshop or other hazardous area, etc). Tactile warning is specified by an 8 prefix on the lever design.
Door handing — ALX Series locks can be configured during installation to support any door handing. As a result, it is not necessary to specify handing during the ordering process.
Lever Designs
 |

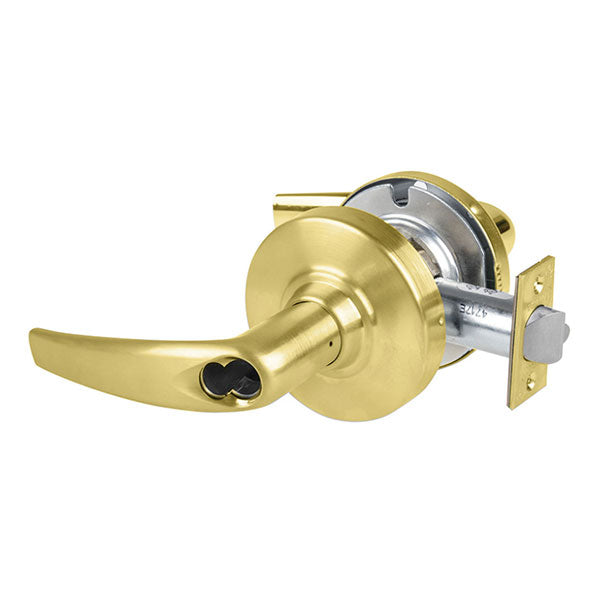

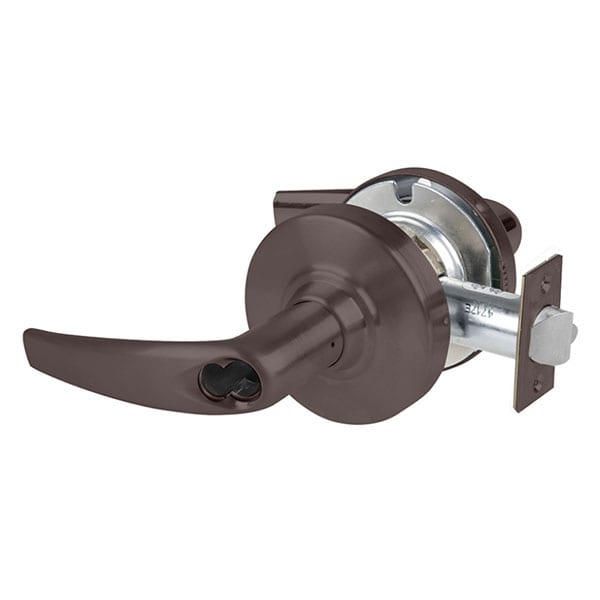

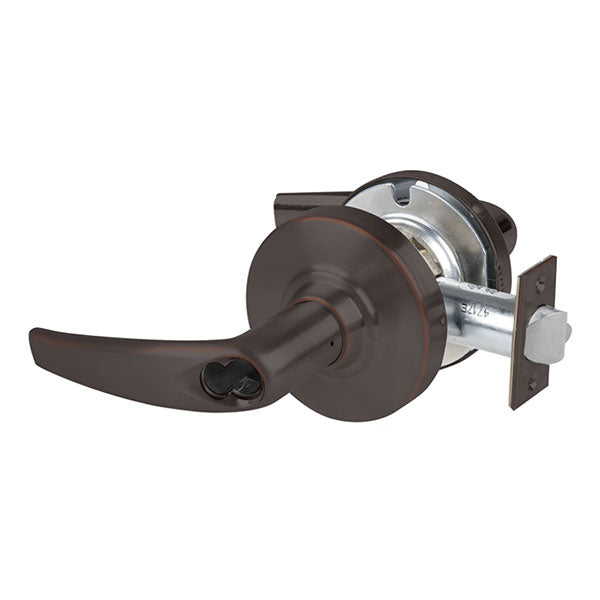

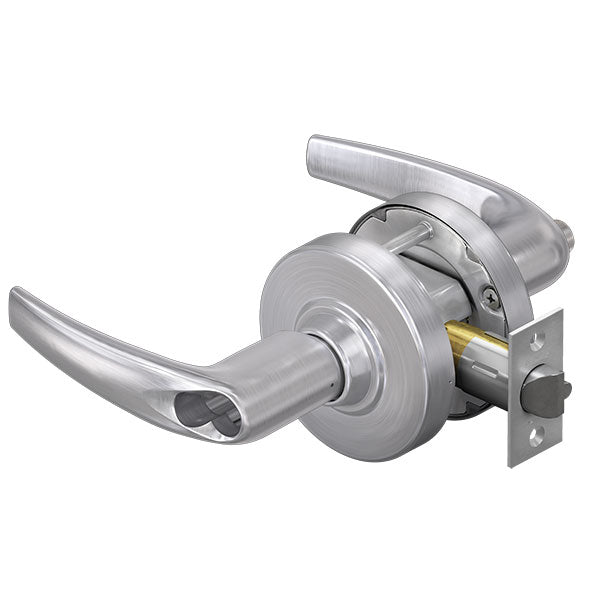

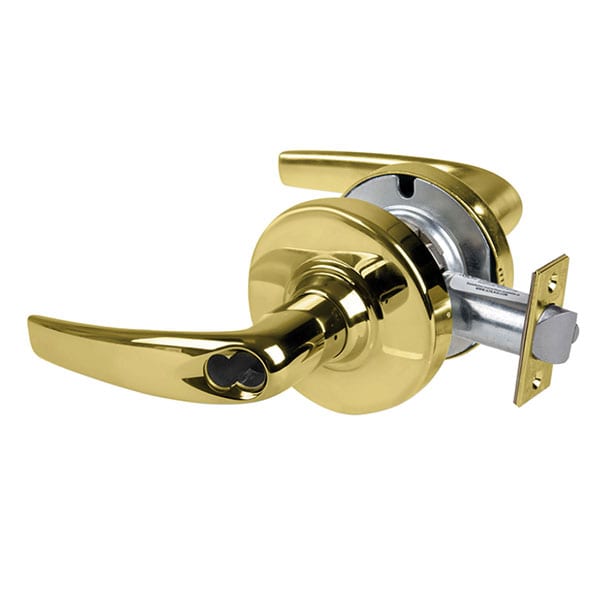

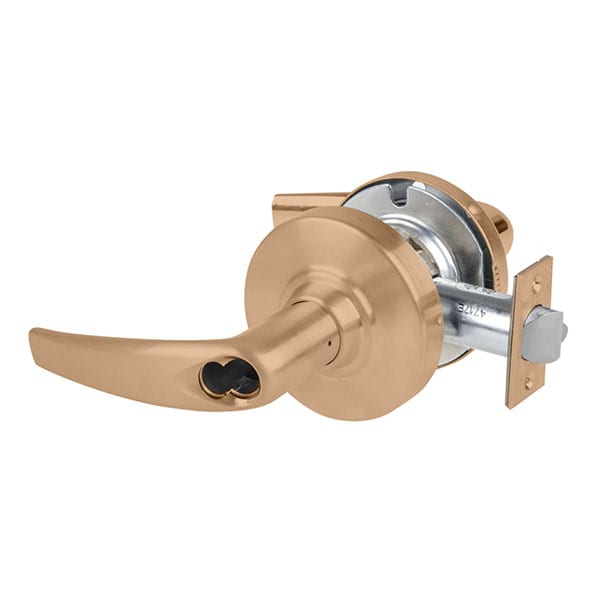

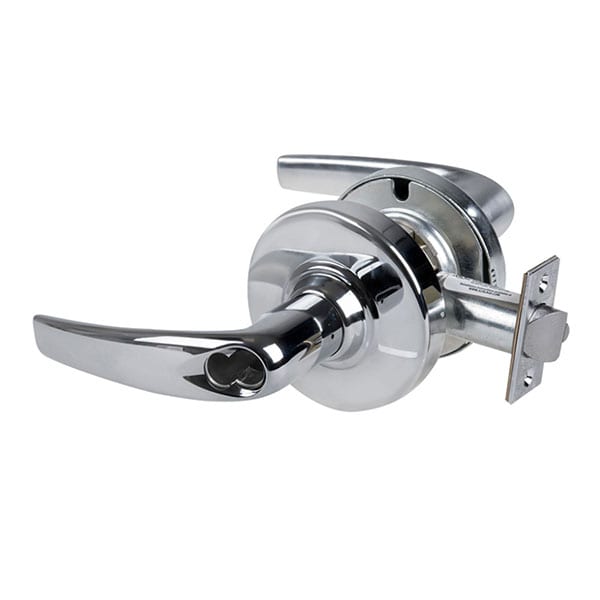

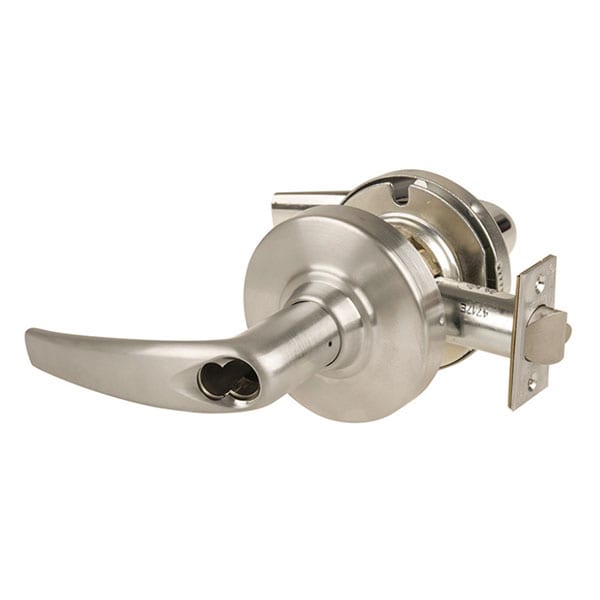

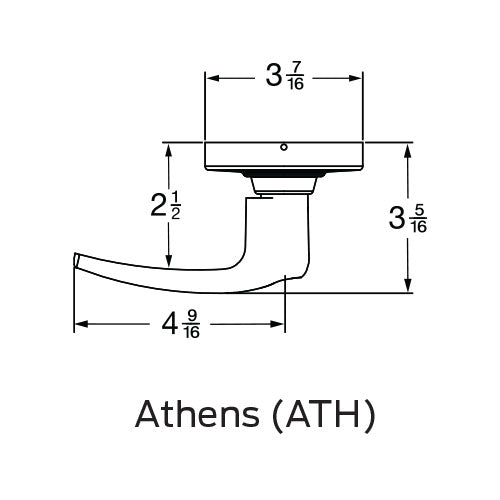

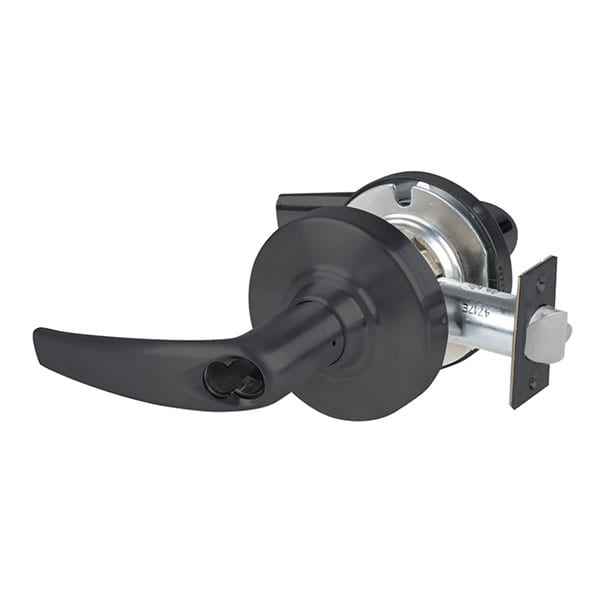

Athens (ATH)
|
 |
Boardwalk (BRK)
|
 |
Broadway (BRW)
|
 |
Latitude (LAT)
|
 |
Longitude (LON)
|
 |
Omega (OME)
|
 |
Rhodes (RHO)
|
 |
Saturn (SAT)
|
 |
Sparta (SPA)
|
 |
Tubular (TLR)
|
Specifications
| Chassis |
Material: Steel, zinc dichromated for corrosion resistance
Door thickness: Fits 1 3⁄8" to 1 3⁄4" doors without adjustment
Handing: Non-handed |
| Functions |
Non-keyed functions: 10 Passage; 40 Privacy; 44 Hospital Privacy; 170 Single dummy; 172 Double dummy

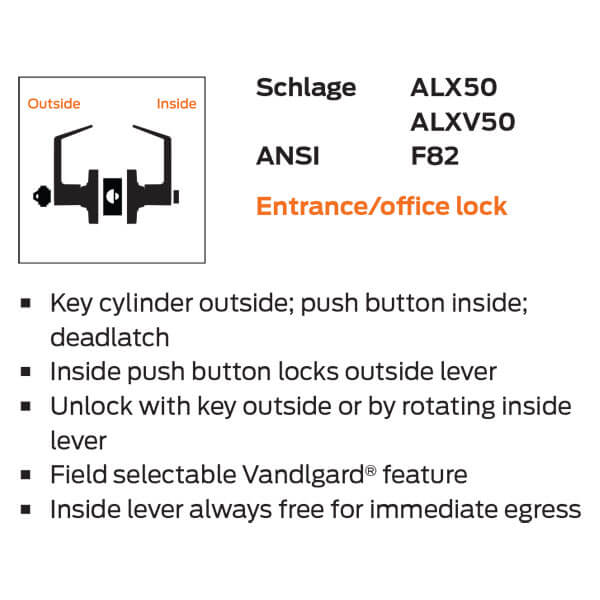

Keyed functions: 50 Entrance/office; 53 Entrance; 70 Classroom; 80 Storeroom |
| Trim |
Levers: Pressure cast zinc, plated to match product finish
Roses: Wrought brass, bronze or zinc plated to match finish, 3 7⁄16" diameter; blank outside rose is 3 1⁄2" diameter |
| Latches |
Backset: 2 3⁄4" (standard) or 2 3⁄8"
Faceplate: 1 1⁄8" x 2 1⁄4" square corners
Bolt: 7⁄8" bolt diameter, up to 1" housing diameter, 1⁄2" throw in Stainless Steel
Optional: 1" bolt diameter with 1⁄2" throw, 3⁄4" anti-friction fire latch |
| Strike |
ANSI curved lip (1-1⁄4" x 4-7⁄8" x 1-3⁄16")
Optional: T strike (see catalog for details) |
| Keying |
Cylinder format: Conventional 6-pin in solid brass
Optional: SL Conventional and FSIC; Full Size and Small Format IC cylinders; construction cylinders
Keyway: Everest 29 S123 patented open keyway, keyed different
Optional: Classic open, Everest 29 restricted and legacy keyways |
| Warranty |
10-year limited |
| Certifications |
Exceeds ANSI/BHMA A156.2 Series 4000, Grade 2 standards
UL/cUL: All locks listed for A label single fire door 4' x 8' and pair doors
UL 437: Optional UL listed high-security cylinders
Other: ADA compliant levers (all designs); CA Fire Code compliant levers (all with return of 1⁄2" (64 mm) or less; ICC A117.1 compliant; meets Federal FF-H-106C Series 161; meets FL Building Code and Miami Dade requirements for hurricanes |
