Description

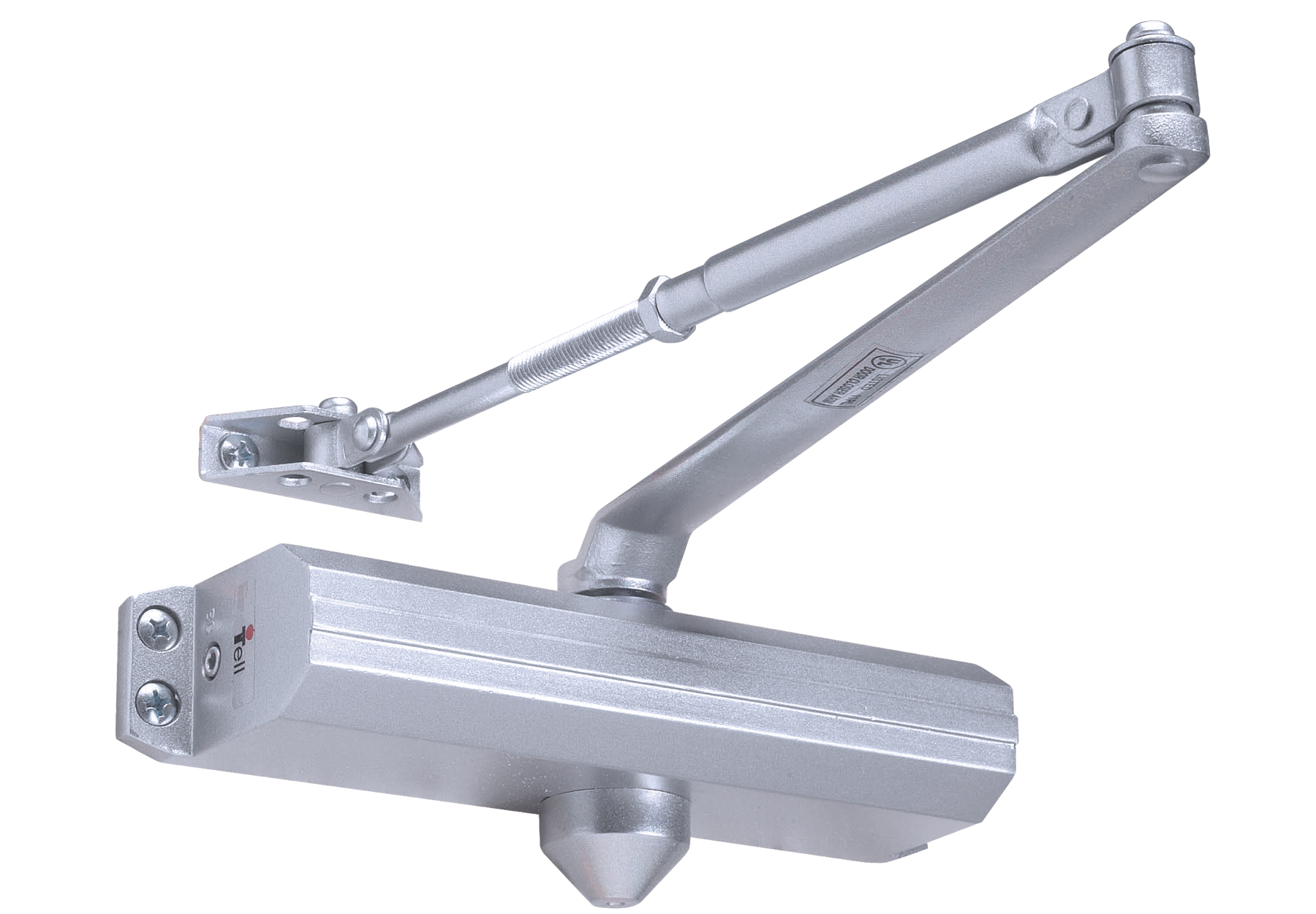

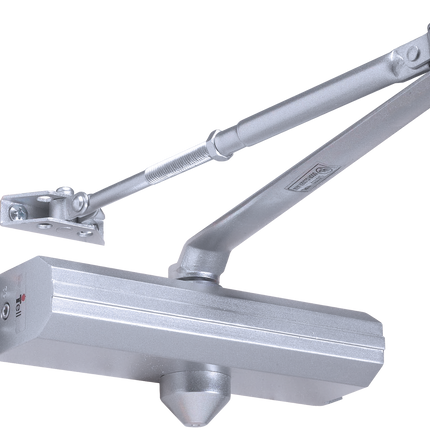

The Tell 600 Series door closer is a grade 1, heavy duty cast aluminum surface applied door closer, designed for interior commercial use and comes with hardware for all installation applications. This closer complies with ANSI A156.4, UL/ULC listed up to three hours fire rated. The closer is an adjustable 1-4 and 3-6 adjustable spring tension. Other finishes available.
Specifications
| Specification |
Details |
| Performance |
- Complies with ANSI A156.4
- Grade 1, 2,000,000 cycles
- UL/ULC listed up to 3 hours fire rated
|
| Chassis |
|
| Handing |
|
| Mounting |
- Tri-Pack – regular, top jamb and parallel arm applications
|
| Arm |
- Forged steel, accommodates reveals up to 3 1/4”, adjustable extension arm
|
| Spring Power |
- Adjustable sizes 1 - 4 or 3 - 6
|
| Warranty |
|
Options
| Option |
Details |
| Arm Options |
- Top Jamb Deep Reveal – DC100101 AL, DC100134 DURO
- Friction Hold Open – DC100097 AL, DC100098 DURO
|
| Cover Kit |
- Plated kits: DC100165 US3, DC100167 US26
- Cover
- Parallel arm
- Bracket forged steel
|
| Drop Plate |
- DC100100 (AL), DC100129 (Duro)
- For top jamb mount when overhead ceiling clearance is less than 1-7/8”
- Provides clearance for overhead holder
- Permits parallel arm installation on doors with a minimum top rail of 2-1/2”
|
| Thru-bolts |
- SNB1 – DC100222 AL, DC100095 DURO (For 1-3/4” door)
- SNB2 – DC100089 (AL), DC100203 (Duro) (For 1-3/8” door)
|
