ABH 1012-32D Concealed Overhead Door Holder – Satin Stainless Steel
The ABH 1012-32D is a heavy-duty, concealed overhead door holder designed for high-traffic commercial and institutional settings. Its satin stainless steel finish (US32D) offers both durability and a sleek appearance.
Key Features:
Concealed Mounting: Ensures a clean, unobtrusive look while protecting the hardware from tampering.
Versatile Functionality: Supports stop, hold-open, and friction functions, accommodating single or double-acting doors.
Adjustable Opening Range: Allows door openings from 85° to 110°, in 5° increments.
Shock-Absorbing Mechanism: Integrated spring provides a 3° to 5° cushion before reaching the dead-stop position, reducing wear and tear.
Non-Handed Design: Simplifies installation by eliminating the need for left or right-hand orientation.
Durable Construction: Made from stainless steel, suitable for both interior and exterior applications.
Fire-Rated Compliance: UL Listed for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours (stop function only).
Ideal for use in schools, hospitals, and office buildings, the ABH 1012-32D ensures reliable door control and longevity.
ABH 1013-32D Concealed Overhead Door Holder – Satin Stainless Steel
The ABH 1013-32D is a heavy-duty, concealed overhead door holder designed for high-traffic commercial and institutional settings. Its satin stainless steel finish (US32D) offers both durability and a sleek appearance.
Key Features:
Concealed Mounting: Ensures a clean, unobtrusive look while protecting the hardware from tampering.
Versatile Functionality: Supports stop, hold-open, and friction functions, accommodating single or double-acting doors.
Adjustable Opening Range: Allows door openings from 85° to 110°, in 5° increments.
Shock-Absorbing Mechanism: Integrated spring provides a 3° to 5° cushion before reaching the dead-stop position, reducing wear and tear.
Non-Handed Design: Simplifies installation by eliminating the need for left or right-hand orientation.
Durable Construction: Made from stainless steel, suitable for both interior and exterior applications.
Fire-Rated Compliance: UL Listed for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours (stop function only).
Ideal for use in schools, hospitals, and office buildings, the ABH 1013-32D ensures reliable door control and longevity.
ABH 1014-32D Concealed Overhead Door Holder – Satin Stainless Steel
The ABH 1014-32D is a heavy-duty, concealed overhead door holder designed for high-traffic commercial and institutional settings. Its satin stainless steel finish (US32D) offers both durability and a sleek appearance.
Key Features:
Concealed Mounting: Ensures a clean, unobtrusive look while protecting the hardware from tampering.
Versatile Functionality: Supports stop, hold-open, and friction functions, accommodating single or double-acting doors.
Adjustable Opening Range: Allows door openings from 85° to 110°, in 5° increments.
Shock-Absorbing Mechanism: Integrated spring provides a 3° to 5° cushion before reaching the dead-stop position, reducing wear and tear.
Non-Handed Design: Simplifies installation by eliminating the need for left or right-hand orientation.
Durable Construction: Made from stainless steel, suitable for both interior and exterior applications.
Fire-Rated Compliance: UL Listed for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours (stop function only).
Ideal for use in schools, hospitals, and office buildings, the ABH 1014-32D ensures reliable door control and longevity.
ABH 1023-32D Concealed Overhead Stop – Satin Stainless Steel
The ABH 1023-32D is a heavy-duty, concealed overhead door stop built for high-traffic commercial spaces. Finished in satin stainless steel (US32D), it delivers both strength and a clean architectural look.
Features:
Concealed installation for a sleek appearance
Supports stop, hold-open, and friction functions
Adjustable opening range from 85° to 110°
Shock-absorbing internal spring reduces wear
Compatible with 1-3/4" to 2-1/4" doors
UL listed for fire-rated doors (stop function only)
This non-handed stop is ideal for schools, hospitals, and office buildings where reliability and minimal hardware visibility are key.
The Tell 600 Series door closer is a grade 1, heavy duty cast aluminum surface applied door closer, designed for interior commercial use and comes with hardware for all installation applications. This closer complies with ANSI A156.4, UL/ULC listed up to three hours fire rated. The closer is an adjustable 1-4 and 3-6 adjustable spring tension. Other finishes available.
Specifications
Specification
Details
Performance
Complies with ANSI A156.4
Grade 1, 2,000,000 cycles
UL/ULC listed up to 3 hours fire rated
Chassis
Cast aluminum
Handing
Non-handed
Mounting
Tri-Pack – regular, top jamb and parallel arm applications
Arm
Forged steel, accommodates reveals up to 3 1/4”, adjustable extension arm
Spring Power
Adjustable sizes 1 - 4 or 3 - 6
Warranty
Lifetime limited
Options
Option
Details
Arm Options
Top Jamb Deep Reveal – DC100101 AL, DC100134 DURO
Friction Hold Open – DC100097 AL, DC100098 DURO
Cover Kit
Plated kits: DC100165 US3, DC100167 US26
Cover
Parallel arm
Bracket forged steel
Drop Plate
DC100100 (AL), DC100129 (Duro)
For top jamb mount when overhead ceiling clearance is less than 1-7/8”
Provides clearance for overhead holder
Permits parallel arm installation on doors with a minimum top rail of 2-1/2”
Thru-bolts
SNB1 – DC100222 AL, DC100095 DURO (For 1-3/4” door)
SNB2 – DC100089 (AL), DC100203 (Duro) (For 1-3/8” door)

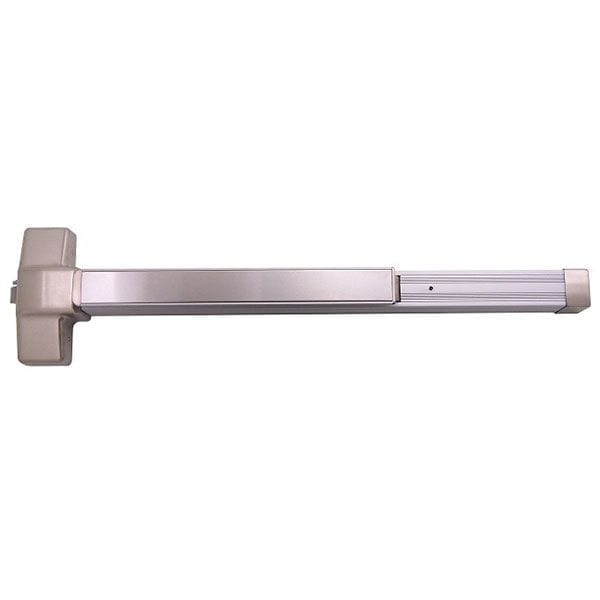

Feature
Details
Performance
Complies with ANSI A156.3, 1994
Grade 1
UL/ULC listed
Rail
Fits 28” to 36” doors
Latch
Stainless steel 5/8” throw
Deadlatch feature
Backset
2-3/4”
Strike
Made with slotted holes for adjustments
Cylinder
SCC - C keyway
6-pin solid brass
Keyed different (KD)
Fasteners
Accommodates wood or metal doors
Door Range
1-3/8” - 2”
Door Preparation
Surface mounted
Warranty
Lifetime limited
Exterior Trim
Exterior pull blank or cylinder
Ball knob trim
Lever trim
Thumbpiece trim with rim cylinder
Escutcheon lever trim
Performance
Complies with ANSI A156.3, 1994
Grade 1
UL/ULC listed
Rail
Fits 28” to 36” doors
Latch
Stainless steel 5/8” throw
Deadlatch feature
Backset
2-3/4”
Strike
Made with slotted holes for adjustments
Cylinder
SCC - C keyway
6-pin solid brass
Keyed different (KD)
Fasteners
Accommodates wood or metal doors
Door Range
1-3/8” - 2”
Door Preparation
Surface mounted
Warranty
Lifetime limited
Exterior Trim
Exterior pull blank or cylinder
Ball knob trim
Lever trim
Thumbpiece trim with rim cylinder
Escutcheon lever trim
